CONTAINER TYPES

Normal container

20’ Dry cargo container
Length	Width	Height
Outside dimension
6.058 m	2.438 m	2.591 m
Internal dimension
5.898 m	2.352 m	2.385 m

CBM
33.1

Weight
Max Gross	Max payload	Tare
30,480 kg	28,000 kg	2,280 kg

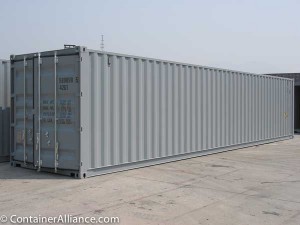

40’ Dry cargo container
Length	Width	Height
Outside dimension
12.192 m	2.438 m	2.591 m
Internal dimension
12.032 m	2.352 m	2.385 m

CBM
67.7

Weight
Max Gross	Max payload	Tare
30,480 kg	26,650 kg	3,3830 kg

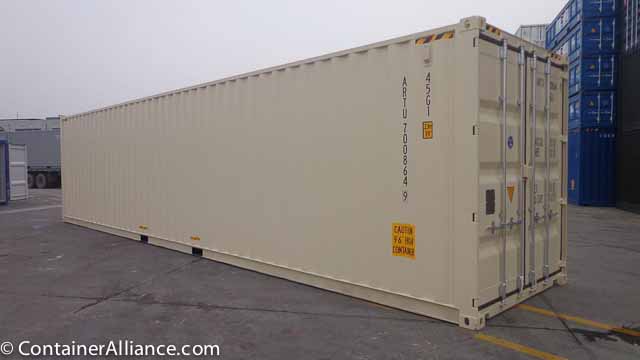

40’ Hi-cube Dry cargo container
Length	Width	Height
Outside dimension
12.192 m	2.438 m	2.896 m
Internal dimension
12.032 m	2.352 m	2.69 m

CBM
76.2
Weight
Max Gross	Max payload	Tare
30,480 kg	25,680 kg	4,.800 kg

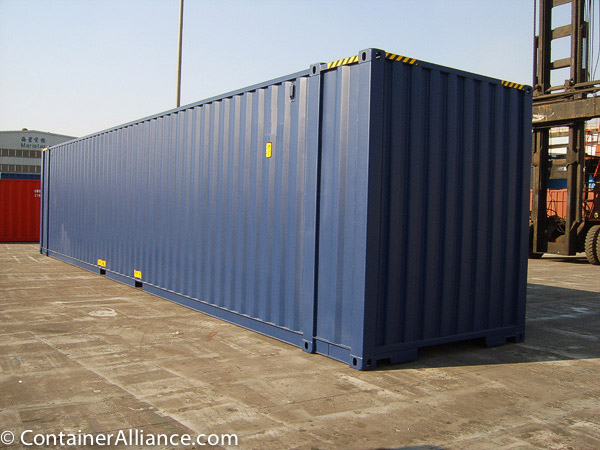

45’ Hi-cube Dry cargo container
Length	Width	Height
Outside dimension
13.716 m	2.352 m	2.896 m
Internal dimension
13.556 m	2.352 m	2.698 m

CBM
86
Weight
Max Gross	Max payload	Tare
30,480 kg	25,610 kg	4,.870 kg
